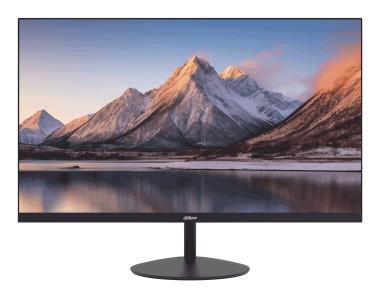

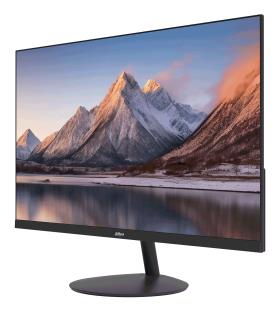

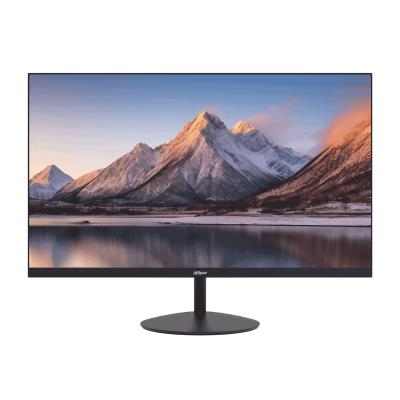

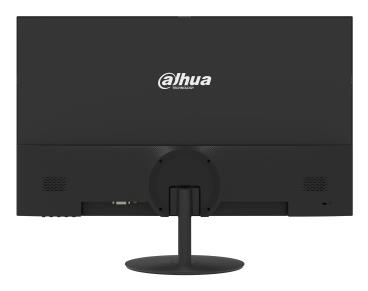

LCD Monitor|DAHUA|23.8 “|1920 x 1080 pixels|Full HD|Native aspect ratio 16:9|LCD|DHI-LM24-A200Y
68,78 € (bez PVN: 56,84 €)
Noliktavā: 1
Pieejams veikalā: 29/07/2026
Garantija: 12/24 mēn.
23.8 ” | 1920 x 1080 pixels | Full HD | 16:9 | LED | VA | 10 ms | Flat | Contrast 3000:1 | Maximum refresh rate 100 Hz | Pixel pitch 0.2745 x 0.2745 mm | 1xHDMI ports quantity | VESA Yes | Energy efficiency class E
| Data Sheet (Link) |
https://eprel.ec.europa.eu/api/product/2139338/fiches?language=EN |
|---|---|
| Energy efficiency class |
E |
| EPREL Registration Number |
2139338 |
| EPREL Version Number |
1 |
| Unit Calculated Weight |
3.75 kg |
| Product Net Weight |
2.79 kg |
| Unit Calculated Volume |
0.0244 cubm |
| Units per Pallet |
0 |
| Automatic brightness control |
No |
| Compliance certificates |
CE/Electromagnetic Compatibility (EMC) |
| E-manual |
Yes |
| Vendor Homepage |
https://www.dahuasecurity.com/mena/products/All-Products/Display–Control/Monitors/Commercial-Series/LM24-A200Y=V1 |
| Category Code |
LC3 |
| Unit Box Height |
0.4 |
| Unit Box Length |
0.61 |
| Unit Box Width |
0.1 |
| Cables included |
HDMI |
| Power adapter included |
Yes |
| Stand included |
Yes |
| Package depth |
101 mm |
| Package height |
405 mm |
| Package weight |
3750 g |
| Package width |
612 mm |
| Depth (without stand) |
41.3 mm |
| Height (without stand) |
320.4 mm |
| Weight (with stand) |
2790 g |
| Width (without stand) |
539.2 mm |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| AC adapter output voltage |
12 V |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
E |
| Energy efficiency scale |
A to G |
| External power adapter |
Yes |
| Input current |
2.5 A |
| Power consumption (max) |
16 W |
| Power consumption (off) |
0.1 W |
| Power consumption (standby) |
0.1 W |
| Power consumption (typical) |
16 W |
| Power supply type |
External |
| Height adjustment |
No |
| Panel mounting interface |
75 x 75 mm |
| Plug and Play |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 – 15 ° |
| VESA mounting |
Yes |
| Wall mountable |
Yes |
| Bluetooth |
No |
| Wi-Fi |
No |
| Built-in USB hub |
No |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| Headphone out |
No |
| VGA (D-Sub) ports quantity |
1 |
| Feet colour |
Black |
| Frameless design |
Yes |
| Illuminated stand |
No |
| Market positioning |
Office |
| Product colour |
Black |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Backlight type |
Edge LED |
| Colour depth |
8 bit |
| Colour gamut standard |
NTSC |
| Contrast ratio (typical) |
3000:1 |
| Display brightness (typical) |
250 cd/m² |
| Display diagonal |
23.8 " |
| Display diagonal (metric) |
61 cm |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LED |
| Haze rate |
25 % |
| HD type |
Full HD |
| LED backlight |
Yes |
| Maximum refresh rate |
100 Hz |
| Native aspect ratio |
16:9 |
| NTSC coverage (typical) |
72 % |
| Panel type |
VA |
| Pixel density |
92.55 ppi |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Response time |
10 ms |
| Screen shape |
Flat |
| Supported video modes |
1080p |
| Touchscreen |
No |
| Viewable size, horizontal |
527.04 mm |
| Viewable size, vertical |
296.46 mm |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Model name |
DHI-LM24-A200Y |
| Model |
DHI-LM24-A200Y |
