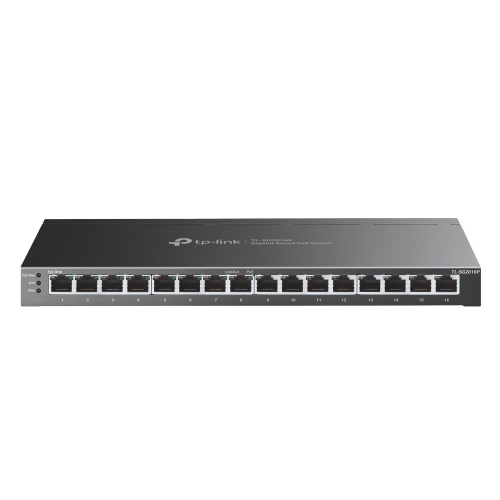

TP-Link TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
177,89 € (bez PVN: 147,02 €)
Noliktavā: 3
Pieejams veikalā: 10/09/2026
Garantija: 12/24 mēn.
Smarter Switching for Smarter Results
JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Value-Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.
VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Svars | 0,0201 kg |
|---|---|
| Dimensijas | 4,4 × 0,7 × 2,3 cm |
| Certification |
CE, FCC, RoHS |
| Package width |
227 mm |
| Package depth |
434 mm |
| Package height |
70 mm |
| Package weight |
1.94 kg |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Storage relative humidity (H-H) |
5 – 90 % |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Housing material |
Metal |
| Power source |
DC/PoE |
| Product colour |
Black |
| Width |
286 mm |
| Depth |
111.7 mm |
| Height |
25.4 mm |
| Operating temperature (T-T) |
0 – 40 °C |
| Security algorithms |
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Input current |
1.31 A |
| Manual |
Yes |
| Supported network protocols |
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| LED indicators |
PoE, Power, System |
| Power consumption (max) |
146.5 W |
| Networking standards |
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| Web-based management |
Yes |
| Switch layer |
L2/L3/L4 |
| Quality of Service (QoS) support |
Yes |
| Basic switching RJ-45 Ethernet ports type |
16 ,Gigabit Ethernet (10/100/1000) |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support |
Yes |
| Port mirroring |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Number of VLANs |
4000 |
| MAC address table |
8000 entries |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Packet buffer memory |
4.1 MB |
| IGMP snooping |
Yes |
| DC input voltage |
53.5 V |
| Heat dissipation |
499.98 BTU/h |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Auto-negotiation |
Yes |
| Switching capacity |
16 Gbit/s |
| Multicast support |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Broadcast storm control |
Yes |
| Total Power over Ethernet (PoE) budget |
120 W |
| MAC address filtering |
Yes |
| Minimum system requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. |
| Firmware upgradeable |
Yes |
| System event log |
Yes |
| Power connector |
DC-in jack |
| Cloud-managed |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Spanning tree protocol |
Yes |
| Virtual LAN features |
Multicast VLAN, Tagged VLAN, Voice VLAN |
| DHCP features |
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| MIB support |
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Access Control List (ACL) |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IP-MAC-Port binding |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Number of queues |
8 |
| Queue scheduling algorithms |
SP, Weighted Round Robin (WRR) |
| Fanless |
Yes |
| MAC address entries |
Dynamic MAC address entries, Static MAC address entries |
