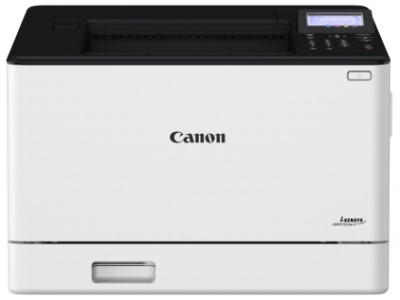

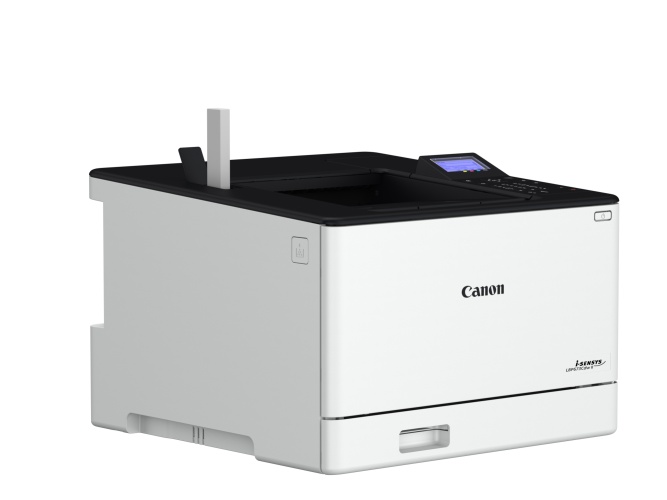

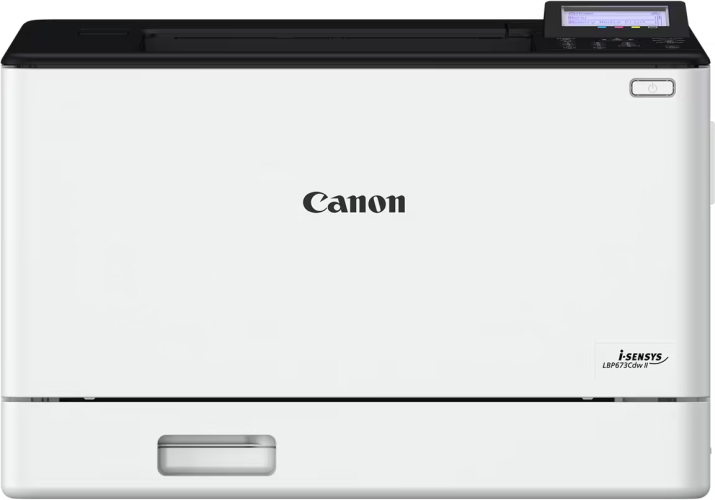

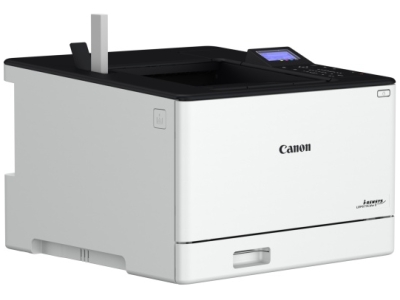

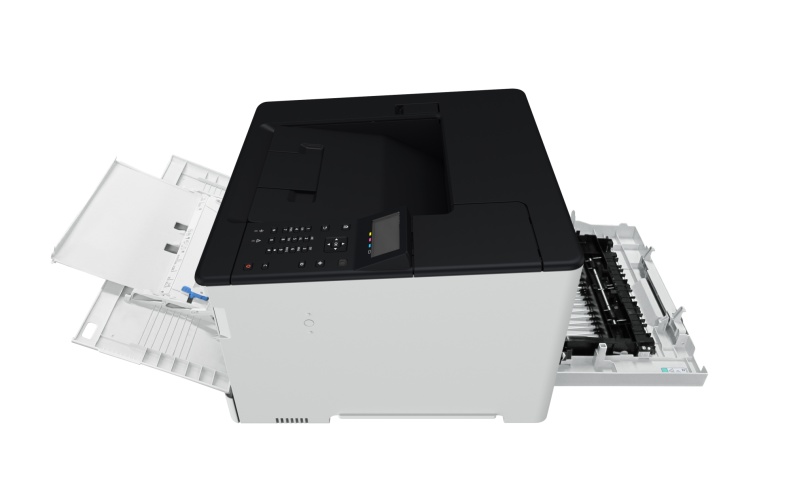

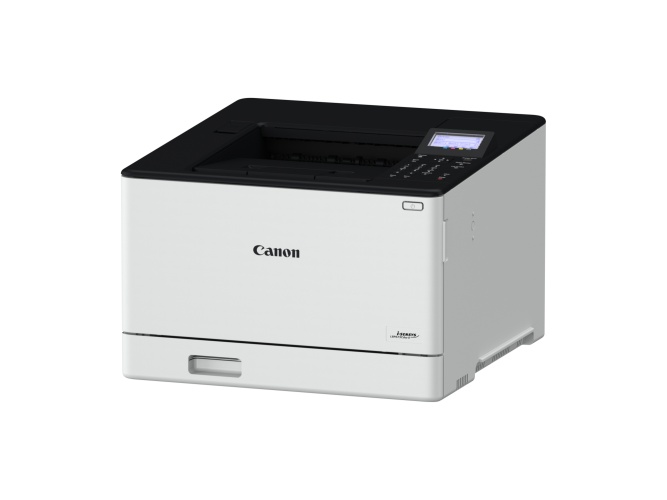

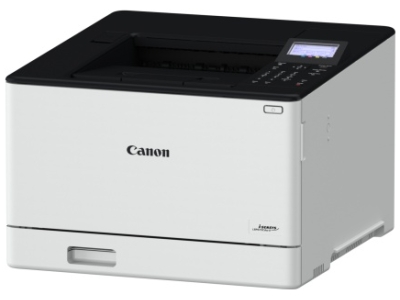

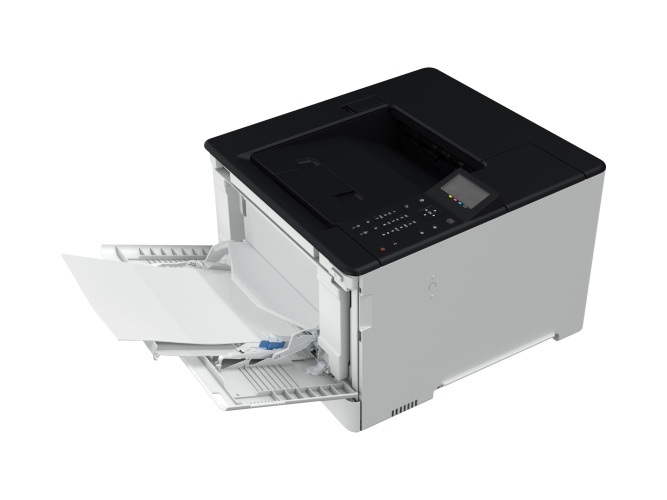

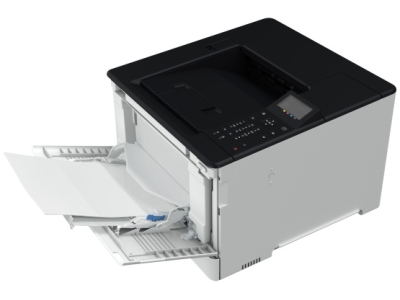

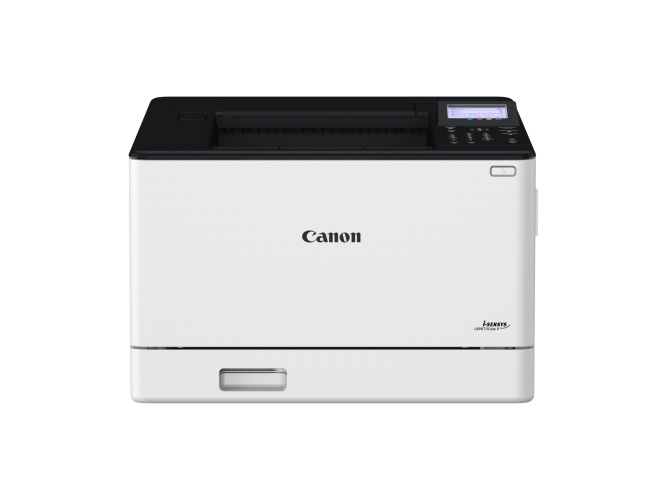

Canon i-SENSYS LBP673Cdw II Printer Laser Colour A4 33 ppm USB Ethernet LAN Wi-Fi

PRINTER ENGINE

Print speed

Single sided: Up to 33 ppm (A4), Up to 60 ppm(A5-Landscape)
Double sided: Up to 29.5 ipm (A4)

Printing method

Colour laser beam printing

Print quality

Up to 1200 x 1200 dpi

Warm-up time

Approx. 16.6 seconds or less from power on

Print margins

5 mm-top, bottom, left and right

Advanced printing features

Encrypted Secure Print Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT app Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere

MEDIA HANDLING

Paper input (Standard)

250 sheets
50 sheets multi-purpose tray

Paper input (Option)

550 sheets cassette

Maximum paper input capacity

850 sheets

Paper output

150 sheets

Media types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Post card, Envelope

Media sizes

Cassette (Standard):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch),
Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch),
Custom sizes: Min 76 x 127 mm Max. 216.0 x 356.0 mm.

Cassette (Optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card,
Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.

Media weights

Cassette (standard and optional): 60 to 163 g/ m2 (Up to 200 g/m2 with Coated paper)
Multi-purpose tray: 60 to 176 g/m2 (Up to 200 g/m2 with Coated paper)

Double sided printing

Automatic Cassette:
A4, A5, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO,
M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size – Min. 148 x 148 mm Max. 216.0 x 356.0 mm
60 to 200 g/m2

GENERAL FEATURES

Power requirements

220-240V (±10%) 50/60Hz (±2Hz)

Power consumption

Maximum: Approx. 1,380W or less
Active printing: Approx. 700 W
Standby: Approx. 24.0W or less
Sleep: Approx. 1.0 W or less
Typical Electricity Consumption (TEC): 0.31 kWh/week6
For detailed information relating to Lot26 regulation, please go to:
http://www.canon-europe.com/For_Work/Lot26/index.aspx

Noise level

Sound power
Active: 65dB or less
Standby: 36dB or less
Sound pressure
Active: Simplex 51dB (CL)) / 50 dB (BW)
Duplex 51dB (CL) / 50dB (BW)
Standby: 25 dB

Dimensions (W x D x H)

425 mm x 427 mm x 300 mm

Weight

Approx. 17.1 kg

Operating environment

Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)

Control panel

5 Line LCD, 3 LED (Job, Error, Energy saver), Buttons, 10-key numeric keypad

CONTROLLER

Processor Speed

1200MHz

Memory

1GB

Storage

4GB

Printer Languages

UFRII, PCL5c, PCL6, Adobe® PostScript3

Fonts

45 PCL fonts, 136 PS fonts

Interface and connectivity

USB 2.0 Hi-Speed,
10BASE-T/100BASE-TX/1000Base-T,
Wireless 802.11b/g/n, Wireless Direct Connection

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security :
TLS1.3, IPSec, IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)

Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)

Software and Printer Management

Remote User Interface (RUI), Department ID Management, Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.

Operating Systems Compatibility

Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux

CONSUMABLES

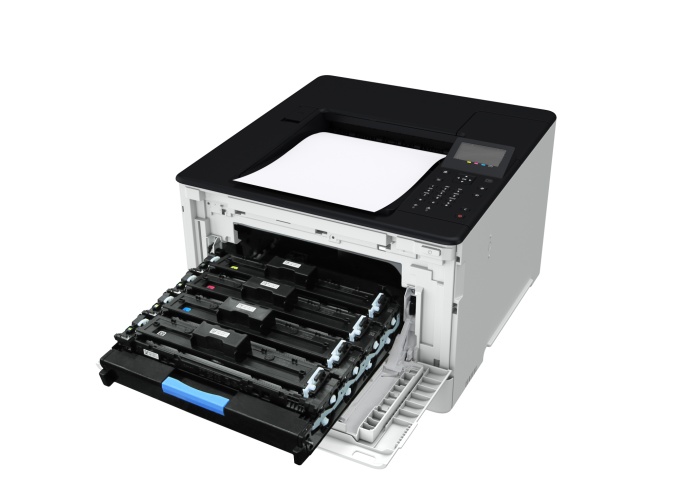

All-in-One cartridges

Cartridge 069 Black (2,100 pages)
Cartridge 069H Black (7,600 pages)
Cartridge 069 Cyan (1,900 pages)
Cartridge 069H Cyan (5,500 pages)
Cartridge 069 Magenta (1,900 pages)
Cartridge 069H Magenta (5,500 pages)
Cartridge 069 Yellow (1,900 pages)
Cartridge 069H Yellow (5,500 pages)

ACCESSORIES / OPTIONS

Items

PAPER FEEDER PF-K1 (550-sheet cassette) (OPTION)
