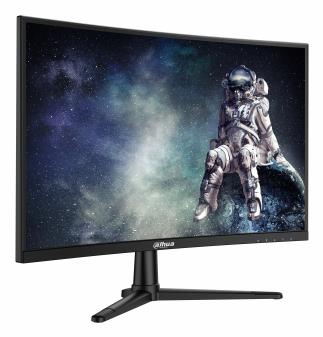

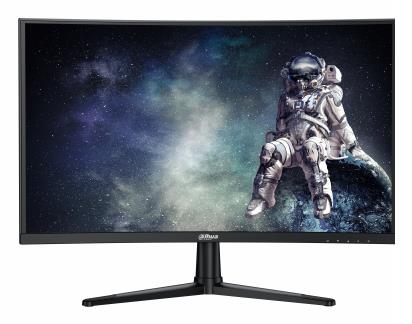

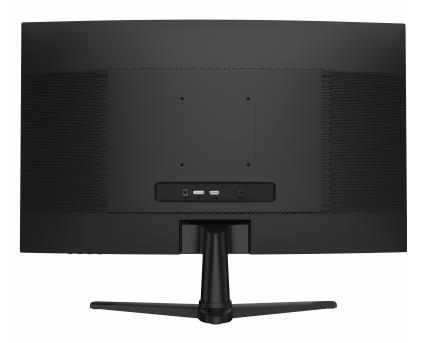

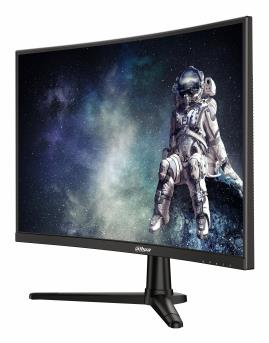

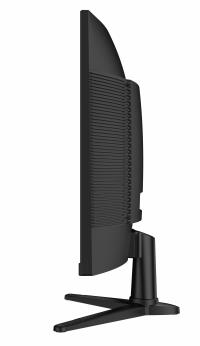

LCD Monitor|DAHUA|23.6 “|1920 x 1080 pixels|Full HD|Native aspect ratio 16:9|LED|Curved|DHI-LM24-E240C
102,08 € (bez PVN: 84,36 €)
Noliktavā: 8
Pieejams veikalā: 30/04/2026
Garantija: 12/24 mēn.
23.6 ” | 1920 x 1080 pixels | Full HD | 16:9 | LED | VA | Curved | Contrast 3000:1 | Maximum refresh rate 240 Hz | Pixel pitch 0.2716 x 0.2716 mm | 1xHDMI ports quantity | 1xDisplayPorts quantity | Headphone out Yes | VESA Yes
| Data Sheet (Link) |
https://eprel.ec.europa.eu/api/product/2398044/fiches?language=EN |
|---|---|
| Energy efficiency class |
E |
| EPREL Registration Number |
2398044 |
| EPREL Version Number |
1 |
| Unit Calculated Weight |
4.24 kg |
| Product Net Weight |
3.6 kg |
| Unit Calculated Volume |
0.0375 cubm |
| Units per Pallet |
0 |
| Automatic brightness control |
No |
| Compliance certificates |
CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Vendor Homepage |
https://www.dahuasecurity.com/fr/products/All-Products/Display–Control/Monitors/Gaming-Series/LM24-E240C=V1 |
| Category Code |
LC3 |
| Unit Box Height |
0.4 |
| Unit Box Length |
0.625 |
| Unit Box Width |
0.15 |
| Cables included |
DisplayPort |
| Manual |
Yes |
| Power adapter included |
Yes |
| Stand included |
Yes |
| Package depth |
145 mm |
| Package height |
400 mm |
| Package weight |
4200 g |
| Package width |
623 mm |
| Bezel width (bottom) |
16.4 mm |
| Bezel width (side) |
3.2 mm |
| Bezel width (top) |
3.2 mm |
| Depth (with stand) |
202.2 mm |
| Depth (without stand) |
90.7 mm |
| Height (with stand) |
414.5 mm |
| Height (without stand) |
320.3 mm |
| Weight (without stand) |
3600 g |
| Width (with stand) |
537.9 mm |
| Width (without stand) |
537.9 mm |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| AC adapter output voltage |
12 V |
| Energy efficiency class (HDR) |
G |
| Energy efficiency class (SDR) |
E |
| Energy efficiency scale |
A to G |
| Input current |
3 A |
| Power consumption (max) |
34 W |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
24 W |
| Power supply type |
External |
| LED indicators |
Status |
| Panel mounting interface |
100 x 100 mm |
| Plug and Play |
Yes |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 – 20 ° |
| VESA mounting |
Yes |
| Wall mountable |
Yes |
| Bluetooth |
No |
| Wi-Fi |
No |
| Built-in USB hub |
No |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| Headphone out |
Yes |
| Detachable stand |
Yes |
| Feet colour |
Black |
| Frameless design |
Yes |
| Front bezel colour |
Black |
| Illuminated stand |
No |
| Market positioning |
Gaming |
| Product colour |
Black |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| AMD FreeSync |
No |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| NVIDIA G-SYNC |
No |
| Backlight type |
Edge LED |
| Colour depth |
8 bit |
| Colour gamut standard |
NTSC |
| Contrast ratio (typical) |
3000:1 |
| Display brightness (typical) |
350 cd/m² |
| Display diagonal |
23.6 " |
| Display diagonal (metric) |
60 cm |
| Display resolution |
1920 x 1080 pixels |
| Display technology |
LED |
| HD type |
Full HD |
| LED backlight |
Yes |
| Maximum refresh rate |
240 Hz |
| Native aspect ratio |
16:9 |
| NTSC coverage (typical) |
85 % |
| Panel type |
VA |
| Pixel density |
93.3 ppi |
| Pixel pitch |
0.2716 x 0.2716 mm |
| Response time (MPRT) |
1 ms |
| Screen curvature rating |
1500R |
| Screen shape |
Curved |
| Supported video modes |
1080p |
| Surface hardness |
3H |
| Touchscreen |
No |
| Viewable size, horizontal |
521.395 mm |
| Viewable size, vertical |
296.285 mm |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
